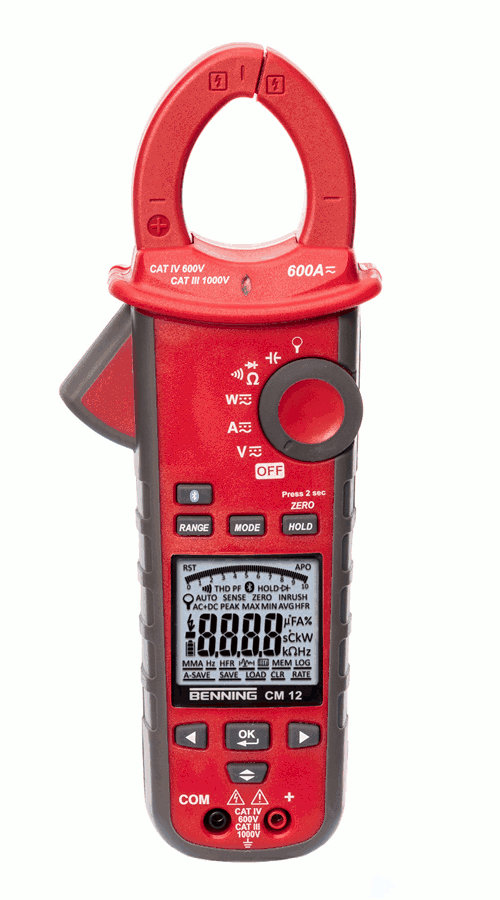

TRUE RMS Power Current Clamp Multimeter with logging function and Bluetooth® interface

For all sophisticated measuring tasks in industry and trade. Monitor, store and share the measured values for further evaluation within your organization via the free "BENNING MM-CM Link" app.

• precise due to TRUE RMS measuring method (AC, AC+DC)
• measurement of inrush currents (motors etc.)
• recording of load profiles on single-phase and three-phase loads in AC/DC mains
• simultaneous detection of current (A) and voltage (V) for effective power (W) and power factor measurements
• continuity test (30 Ω - 100 Ω), diode test (0.8 V) and bipolar phase sequence test
• low-pass filter (HFR) for measurements at pulsed motor drives
• harmonic measurement (THD) for evaluation of the mains quality
• optional: AC current measurement up to 3,000 A by means of flexible AC current transformer BENNING CFlex 1 (044068)
• data logger function “LOG” (10,000 measured values, sampling arte: 1 s to 10 min.)
• memory function “MEM” (1,000 measured values, automatic storage of stable measured values and manual storage with a simple keystroke)
• Bluetooth® Low Energy 4.0 interface
• IOS and Android app for data link to smartphone/tablet
• AUTO SENSE function for automatic selection of measuring ranges and functions
• integrated Volt sensor for non-contact cable break detection (red LED)
• easy selection of menu functions via cursor key
• memory of measured value (HOLD), peak value (PEAK) and maximum/minimum/average values (MAX/MIN/AVG)
• measuring category CAT IV 600 V, CAT III 1000 V
• incl. carrying case, batteries and measuring leads

Technical changes, model or color modifications, mistakes and delivery facilities without notice! No responsibility for literal mistakes.

CM12
