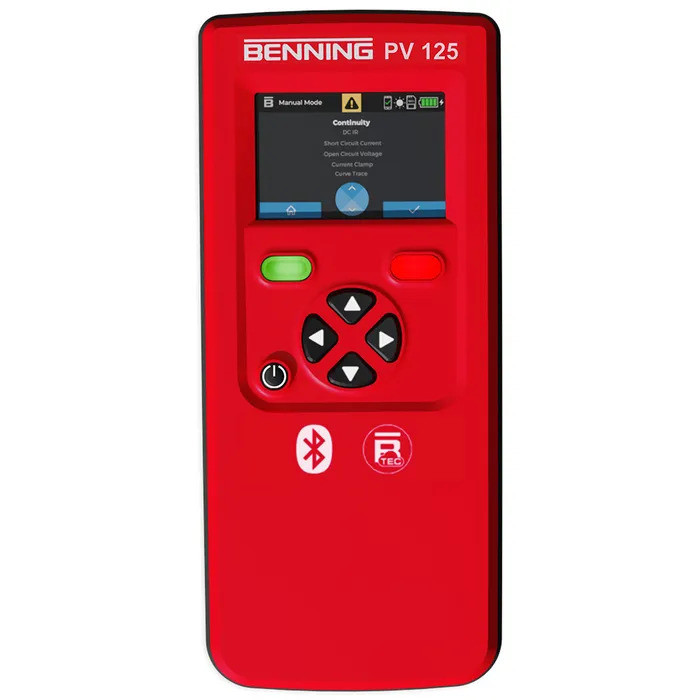

BENNING PV 125 (10241491) PV installation tester with 1500 V (Uo/c), 25 A (Is/c) and RISO measurement
Expected to be available from february 2026!
PV 125 photovoltaic installation tester for testing grid-connected PV systems up to 1500 V
Standard-compliant testing in accordance with DIN EN 62446-1 (VDE 0126-23-1) and DIN EN 62446-2 (VDE 0126-23-2) with test procedure category 1
Powerful – 1500 V (Uo/c), 25 A (ls/c) and RISO measurement
Simple – AUTO test sequences and manual measurements
Fast – testing in just a few seconds
Performance features
Internal measurement value memory for 1000 automatic measurements organized by object (10), inverter (10), and string (20)
Data exchange and firmware updates with all common operating systems (Windows, Mac, Android, and iOS)
Intuitive color display, navigation, and colored function keys
Bluetooth and LoRa wireless interface
OTA update (over-the-air update)
Manual measurements for troubleshooting and diagnostics
Powerful Li-ion battery pack with charging cradle
Documentation and data management
Compatible with BENNING Test Equipment Cloud (BTEC)
Free cloud access with basic documentation and other optional features
BENNING PV 125
Display
3.5" color display
Protective conductor resistance (Rpe)
0,05 Ω - 199 Ω
No-load voltage (Uo/c)
10 V - 1500 V DC*
Short-circuit current (ls/c)
0,5 A - 25 A DC
Insulation resistance (RISO)
0,05 MΩ - 999 MΩ (250/500/1000/1500 V)
Auto measurement 1
Polarity, Uo/c , ls/c , RISO
Auto measurement 2
DC operating power measurement (via BENNING CM 3-PV and PV measuring cable set with Y-adapter (MC4 compatible))
Auto measurement 3
RPE, UPE (2-pole)
DC operating current / AC current
0,1 A - 400 A (via BENNING CM 3-PV)
DC operating power
0,50 kW - 600 k/W (via BENNING CM 3-PV and PV measuring cable set with Y-adapter (MC4 compatible))
Solar radiation
100 W/m² - 1500 W/m² (via BENNING SUN 3)
PV module / ambient temperature
-30 °C to +125 °C (via BENNING SUN 3)
Voltage (2-pole)
10 V - 400 V AC/DC
Measured value memory / interfaces
1000 PV strings/Bluetooth, radio (LoRa)
Dimensions / weight
ca. 265 x 115 x 78 mm / 1 kg
Scope of delivery
Carrying case, PV measuring cable set MC4 compatible (yellow/black), 4 mm measuring cable set with test probe and alligator clip (yellow/black/red), Li-ion battery (11.55 V, 2930 mAh), charging cradle
*Powerful PV generations with high capacities can reduce the maximum values of the device's measurable open-circuit voltage.
Subject to technical changes, model and color variations, errors, and delivery options. We accept no liability for printing/typing errors.
